A LEATHER-COVERED FOOTSTOOL

The illustration shows a very handy footstool in mission style. The following list of materials will be needed:

4 oak posts, 1 1/2 by 1 1/2 by 12 in., S-4-S.
2 sides, 3/4 by 3 by 12 in., soft wood.
2 ends, 3/4 by 3 by 8 in., soft wood.
1 bottom, 3/4 by 8 by 12 in., soft wood.
1 small box of 8 oz. tacks
2 1/2 doz. ornamental head nails.
1 piece of dark leather, 16 by 20 in.
1/2 lb. hair and a small portion of mission stain.

The posts are the only parts made of quarter-sawed oak, the other parts, being covered with leather, can be made of any kind of soft wood. Chamfer the top end of each post, and taper the lower ends as shown in detail. When this is done the mortises can be cut for the sides as shown in the post detail. When cutting the mortises and tenons take care to make them fit perfectly, as there is nothing to brace the legs at the bottom. The strength of the stool depends upon the joints. Make the surface of the posts smooth by first using No. 1 sandpaper, then finishing with No. 00.

The parts are now assembled. First clamp the ends together, using plenty of glue on the joints, and drive some small nails on the inside of the posts through the tenon ends. When the glue has set, the remaining sides can be put together the same as the ends. Fit the bottom on the inside about 1 in. from the top. This can be made fast by driving nails through the sides and ends of the board. The finishing is done by putting on the mission stain as the directions state on the can, then wax the surface to get a dull gloss.

The leather is now put on. Notch out the corners to fit around the posts, but do not cut the ends off. Lap them under the cover. Before nailing on the cover fix the hair evenly over the top, about 6 in. deep. Draw the leather over the hair and fasten the edges with the 8-oz. tacks. The ornamental nails are driven in last, as shown in the drawing, to make a good appearance.

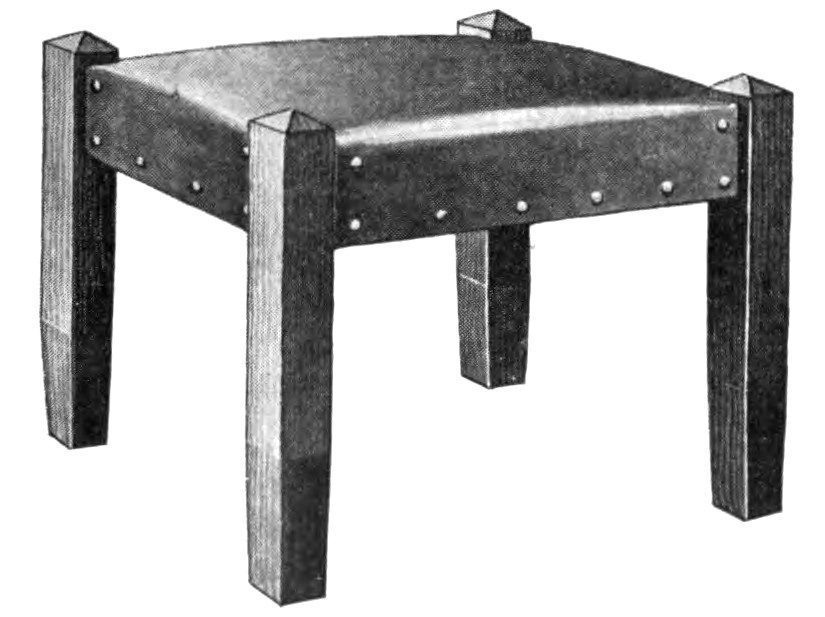

Footstool Leather Covered

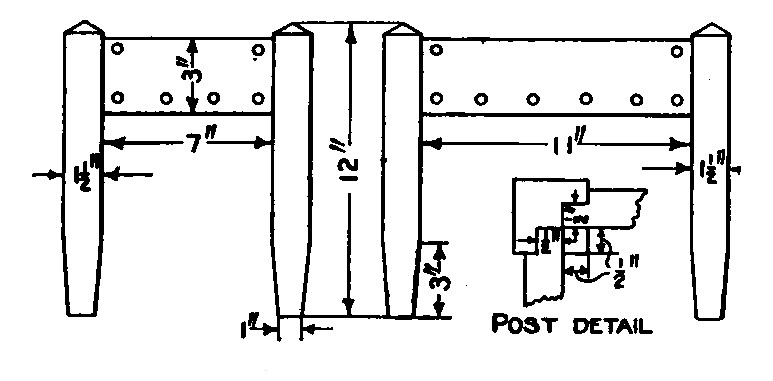

Details of Footstool
